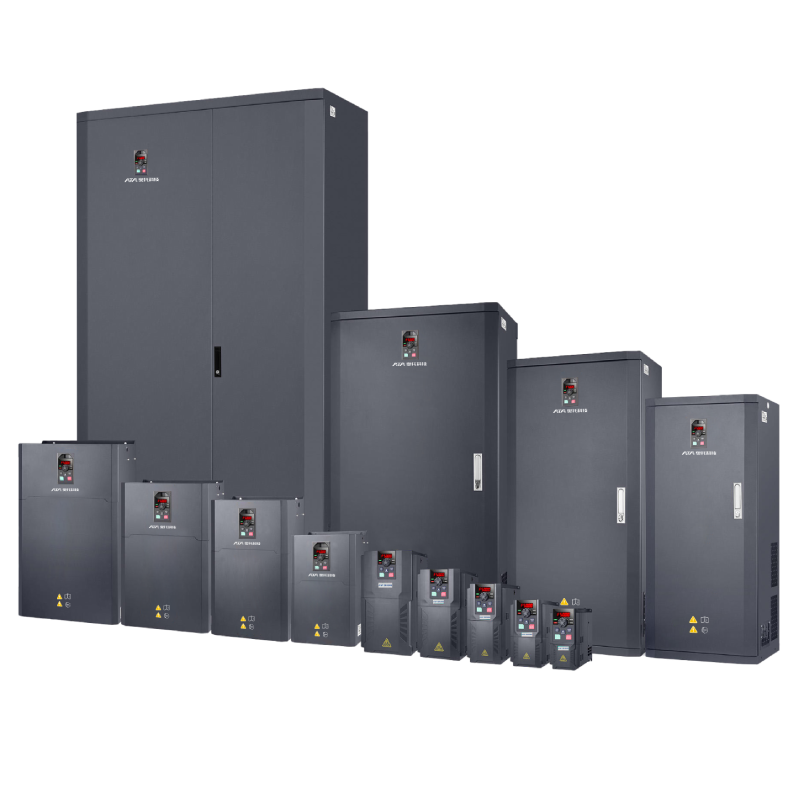

The ATLE7-H Series Standard VFD is a high-performance product integrated with vector control technology. Equipped with advanced current vector control, it can easily drive induction motors-boasting superior quality and high power density. It also delivers notable improvements in usability, maintainability, environmental friendliness, space-saving installation, and design standards, further optimizing the user experience.
Based on the motor's operating status, adjust motor parameters online to achieve optimal control of the motor.
Intelligently adjust acceleration/deceleration rate by load status; excellent current/vector control ensures stable, trip-free operation under 0.1s frequent speed alternation.
The VFD completes the identification of motor speed, direction, and phase angle within 0.2 seconds without the need for dedicated hardware detection circuits, and it smoothly tracks the starting of the freely rotating motor.
During momentary grid power loss, the VFD continues operating without shutting down using energy fed back by the motor, and resumes normal operation once power is restored.
Based on the motor' s operating status, it intelligently determines the flux braking intensity to minimize deceleration time as much as possible.
It intelligently identifies the energy-saving intensity based on the motor' s operating status, minimizing the motor' s energy consumption to the greatest extent.
DC braking can be activated at any frequency without a deceleration process.
With excellent current-limiting performance, the VFD can connect to or disconnect from the motorat will while in operation.
It adopts the international standard MODBUS communication protocol, facilitating complete network control with PLCs, HMI touchscreens, etc.
Adopting a modular design concept, it provides control for various general applications. The output capability of the ATLE7 Series has been proven to meet most industrial control requirements.
| Voltage range | 220V-660V |
|---|---|
| Current range | Input:2.7A-1960A(220V-660V) Output:2.1A-1900A(220V-660V) |
| Typical power range | 0.75KW-1250KW |
| Control mode | Open-loop vector control (SVC / V/F control) |
| Speed regulation accuracy | ±0.3% (Sensorless Vector Control) / ±0.01% (Closed-loop Vector Control with encoder) |
| Speed regulation range | 1:200(SVC) 1:1000(FVC) |
| Overload capacity | *Heavy-load application: Shuts down after 60s at 150% of rated current *Light-load application: Shuts down after 60s at 110% of rated current |
| Input power factor | 0.7~0.85 |
| Efficiency | Greater than 97% |
| Braking method | Full-Range DC Braking / Intelligent Flux Braking |
| Communication interfaces | Modbus RTU is standard, while Profibus-DP, Profibus, and EtherNet/IP are optional |
| Operating temperature | -10℃~+50℃; Derating is required when ambient temperature is 40~50℃:derate by 1.5% for every 1℃ increase |
| Altitude | Up to 3000m |
| Enclosure protection class | IP20 |
| Certifications for this specific model | CE / EAC |
| Equipment types this model is suitable for | Compressors / HVAC fans / Water pumps / Textile machines / Plastic extruders / Ceramic equipment / Mining machinery / Conveyors / Centrifuges / Mills / Saws / Metalworking machines / Packaging machines / Elevators & escalators / Pharmaceutical equipment / Tanning machines |
|---|---|
| Industries and specific use case for each | Metallurgy — drive control for rolling mill & smelting equipment Petroleum — pump/compressor startup at oil refinery sites Chemicals — process pump & agitator speed regulation Machinery — speed control for machine tools & processing equipment Shipbuilding — marine pump and fan drive adjustment Oil fields — downhole pump & surface compressor control Mining — underground conveyor and crusher startup Paper-making — pulp pump & paper machine speed regulation Cement — kiln fan and raw material conveyor control Fire protection — fire water pump automatic drive Power generation — auxiliary fan & circulating pump regulation Coal mining — underground belt conveyor & coal mill drive Wastewater treatment — dosing pump and aeration fan speed control |
Wide speed regulation range with stable low‑speed torque, suitable for variable‑speed working conditions of heavy‑duty and light‑duty loads.
Yes, modular structure supports customized parameter setting and operating panel OEM according to clients’ equipment demands.
Designed for general industrial site environment, applicable for conventional indoor installation in mining, chemical, cement and wastewater industries.
Full set of built‑in electrical protection functions to avoid unexpected shutdown and equipment damage during load fluctuation.
